Visualizing Your Outcome Measure Data

The Insights tab offers a visual overview of standardized outcome measure scoring trends, making it easier for clinicians to track and interpret patient progress over time. This feature is available within each patient’s chart as a dedicated tab, providing quick access to key insights.

Accessing Outcome Measure Data

• Navigate to a patient’s chart.
• Click on the Insights tab.
• The system displays a graph plotting the patient’s outcome measure scores over time based on the administered date.
  • For most scored Outcome Measures, the graph will plot the patient’s scores over time.

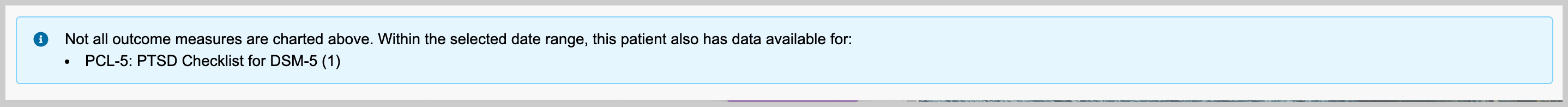

  • For Outcome Measures that are not scored, or have very complex scoring, a timeline chart plotting the submission dates for the measure will be displayed.

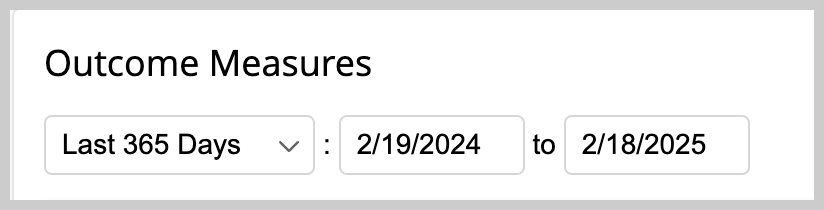

Customizing the Date Range

By default, Insights displays data for the last loaded date range. To refine the view, select a custom timeframe from the available options:

• Predefined Ranges: Current Week, Previous Week, Last 7 Days, Current month, Previous Month, Last 30 Days, Last 30 Days, Current Year, Previous Year, Last 365 Days
• Custom Date Range: Manually adjust the timeframe to focus on specific periods.

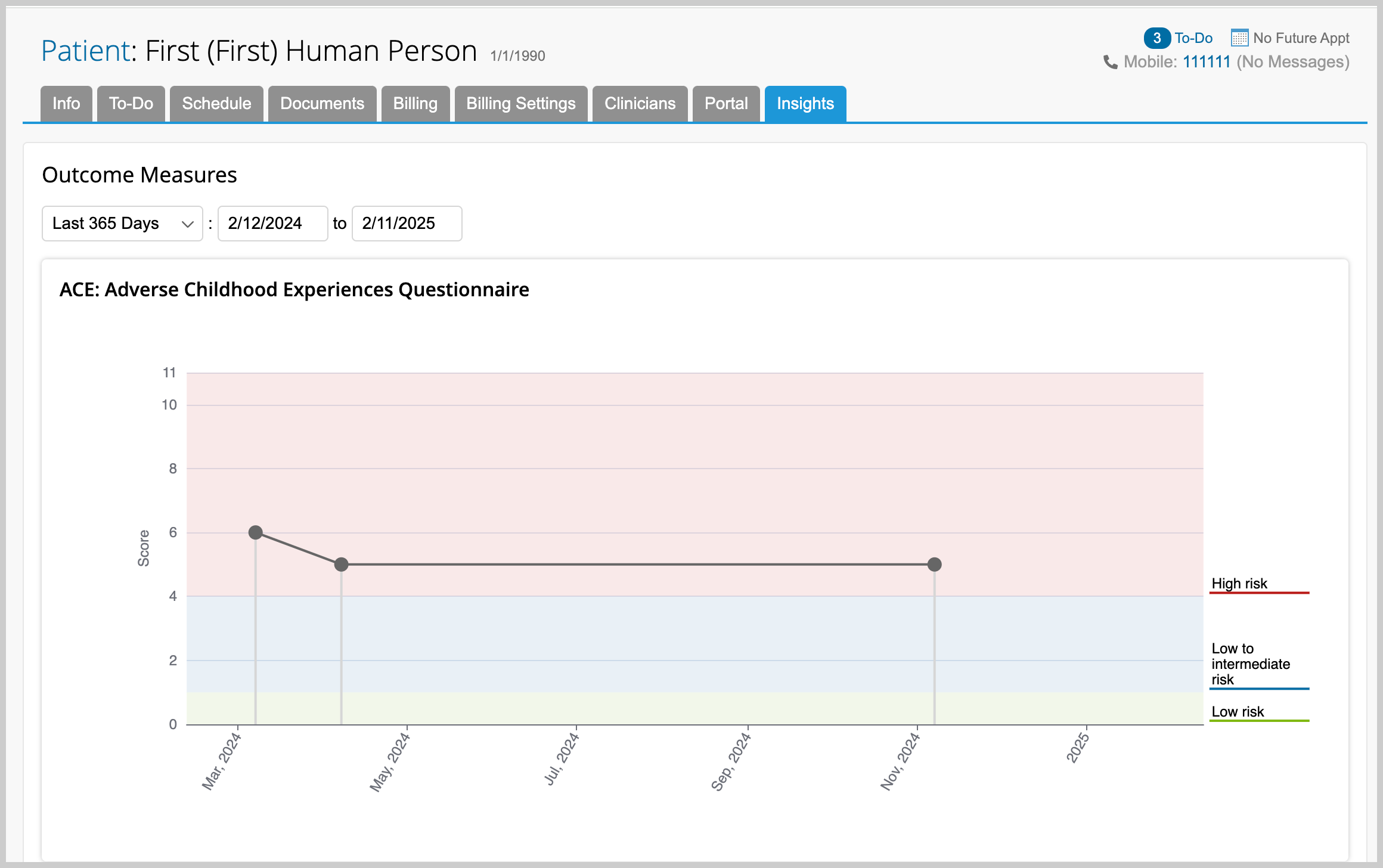

Understanding the Outcome Measure Score Graph

The graph provides a trend line to help visualize progress and identify patterns.

X-axis: Displays the selected date range.

Y-axis: Represents the outcome measure score range.

Data Points: Each point displayed corresponds to a recorded outcome measure score.

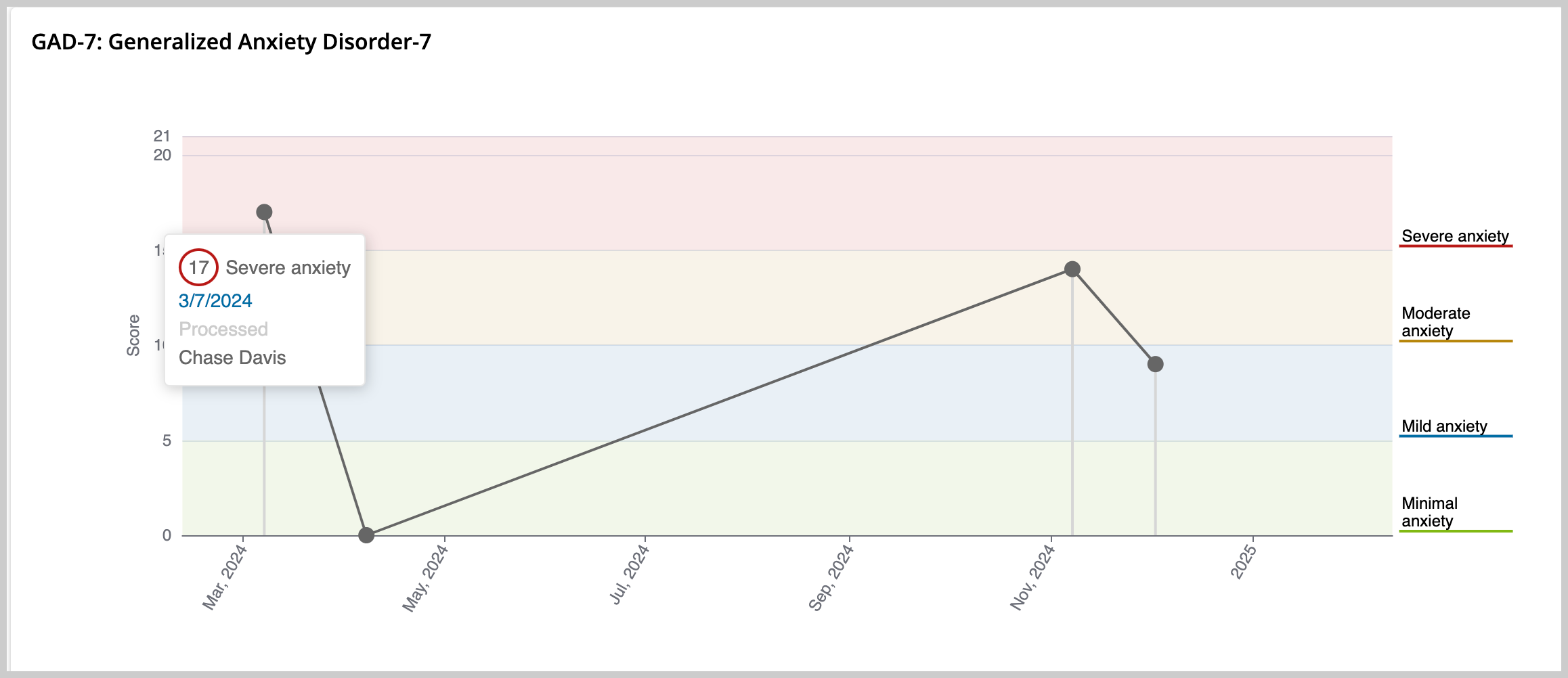

Hovering over a data point reveals details including:

• Score and description, if available
• Date administered
• Clinician who administered or processed it

In the Insights tab, certain scored Outcome Measure results are color-coded to offer a quick severity assessment, allowing you to interpret and track symptoms at a glance. Refer to the specific Outcome Measure for a definition of its scoring scale.

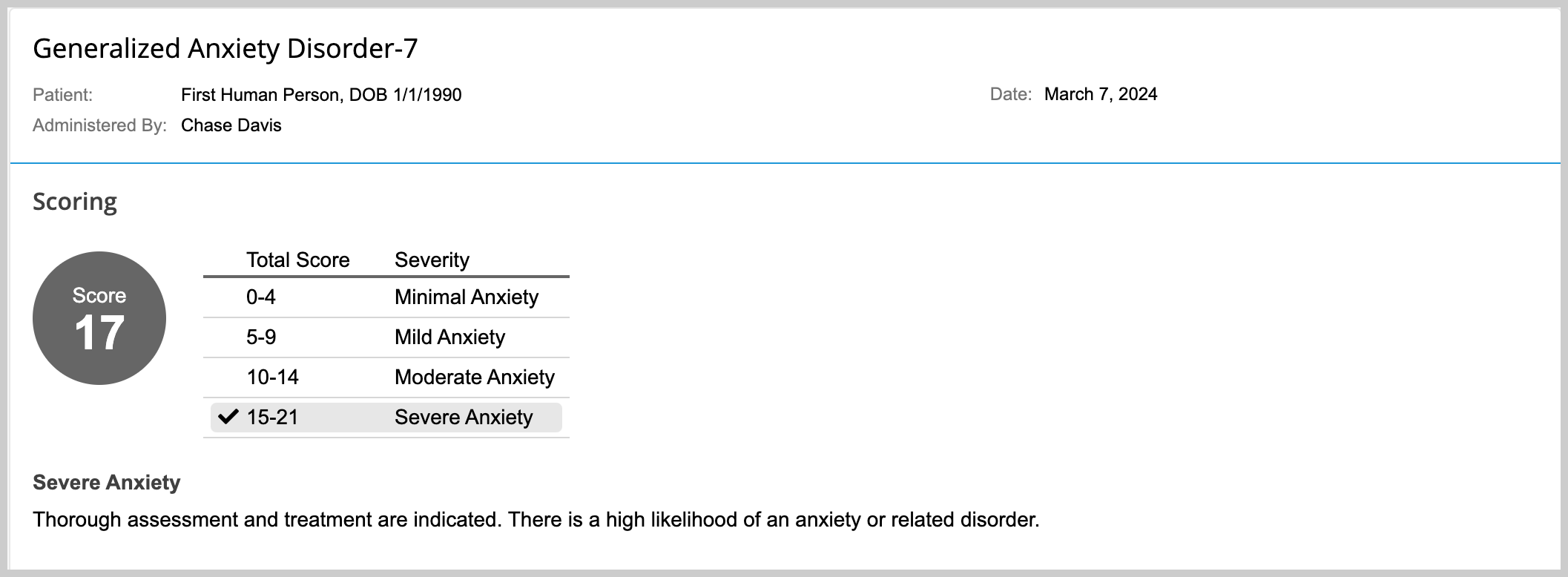

When clicking on a specific date, you will be taken to the original outcome measure submission. Here, you can see detailed responses to questions and any sub-scores this submission may have.

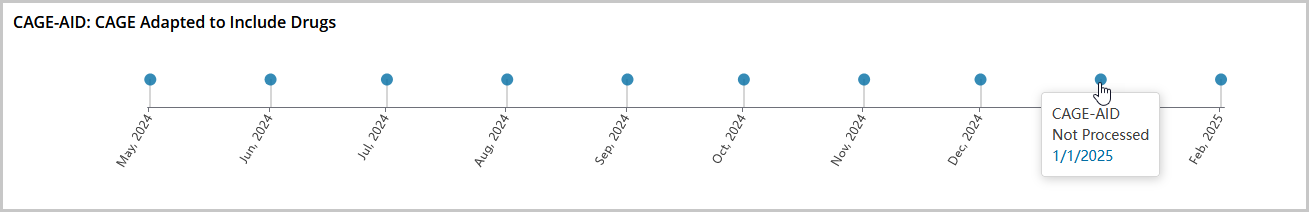

Understanding the Outcome Measure Timeline Graph

The graph provides a plot for each submission of the given Outcome Measure.

X-axis: Displays the selected date range.

Y-axis: Represents the submissions of the Outcome Measure.

Data Points: Each point displayed corresponds to a recorded Outcome Measure submission.

Hovering over a data point reveals details including:

• Date administered
• Clinician who administered or processed it, or status to indicate it has not yet been processed

When clicking on a specific date, you will be taken to the original Outcome Measure submission. Here, you can see detailed responses to questions for this submission.

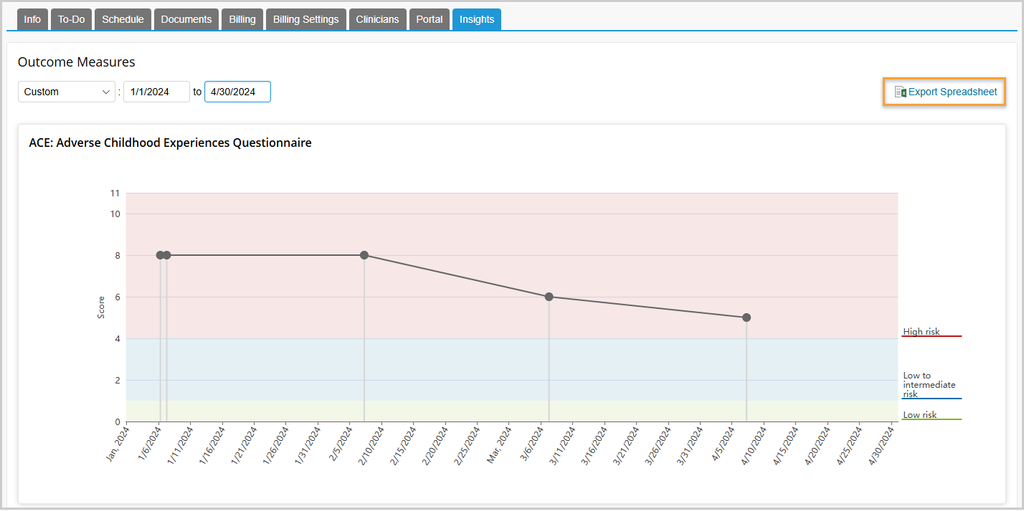

Exporting Outcome Measure Data

You are able to export a patient’s score data that is currently displayed on their Insights tab.

1. Navigate to a patient’s chart.
2. Click on the Insights tab.
3. Select your desired date range
4. Click the Export Spreadsheet button. This will generate a download of an Excel spreadsheet with all submissions of all Outcome Measures that fall within the specified date range.

• Outcome Measures with scores that fall within a threshold will have that threshold reflected in the Score Result column of the spreadsheet.
• Outcome Measures that have multiple scores will display 1 row for each individual score. The score name corresponds with the value in the Criterion column of the spreadsheet.
• Outcome Measures that do not have scores will return blank values in the Criterion, Score Value, and Score Result columns within the spreadsheet.
